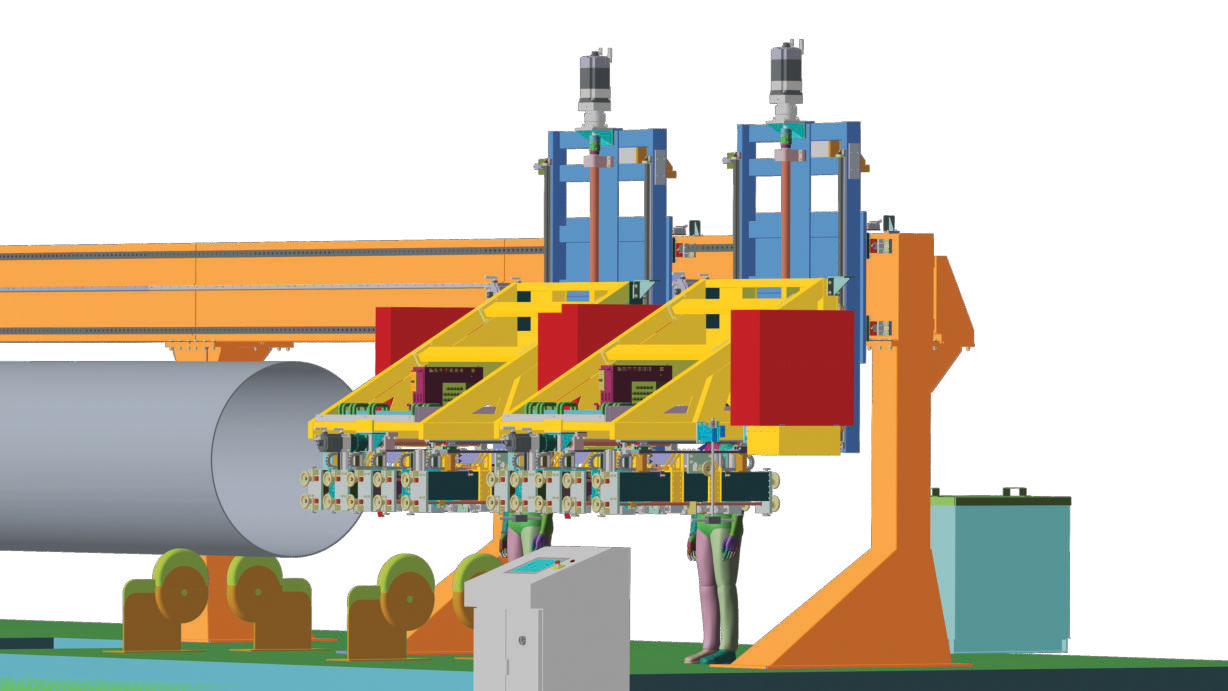

SAW Pipe Weld UT System is Fixed Clusters or Gantry type scanner consisting of two or more testing heads one for the pipe weld as per API 5L or other applicable code. SAW WUTS provides ultrasonic inspection of both HSAW or LSAW pipe using conventional ultrasonic technology.
Fully automated gantry based Ultrasonic Testing System.
Conventional ultrasonic inspection of SAW pipes.

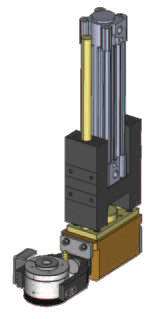

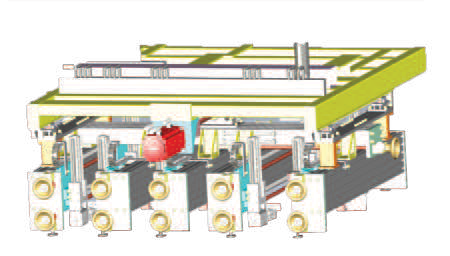

Multi cluster/head technology, for weld inspection as per API.
Typical inspection speeds up to 10m/min.

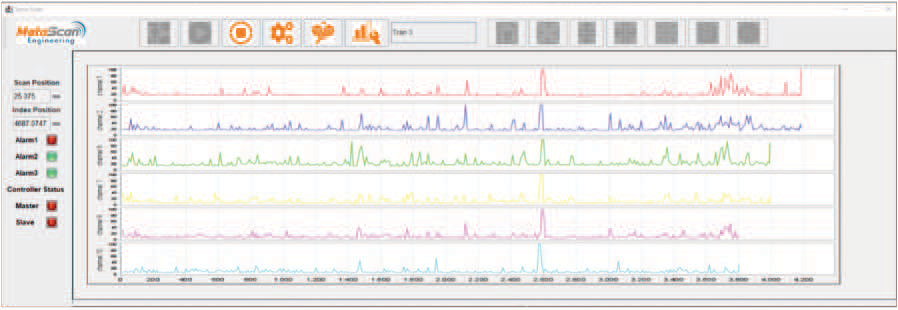

Advanced digital data acquisition and reporting system.
Optional pipe/tube/bar handling system (feeding table, reference, infeed, outfeed conveyor, accept/reject cradles, singling & Transfer mechanism with automation).
Pipe dimensions : 508mm to 1524mm OD.
Thickness : 10 to 40mm
Pipe length : 6 to 12mtr.
Pipe straightness : within 1-2 mm/m or as per API
UT Testing standard : API 5L for UT Sensitivity
