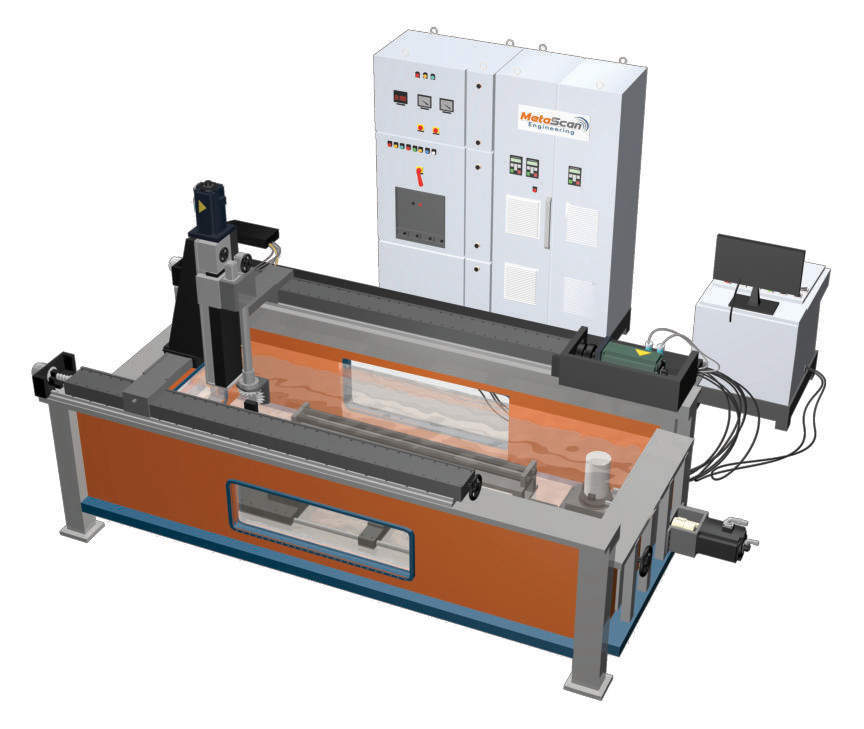

Immersion-UTS inspection system is a multi-axes full ultrasonic immersion testing system for precision inspection of metal, composite, aerospace aluminium, titanium, other metals or other engineering material parts & component. Immersion-UTS solution consist of both standard offerings as well as in customised version.
Fully automated programmed scanning of the component.

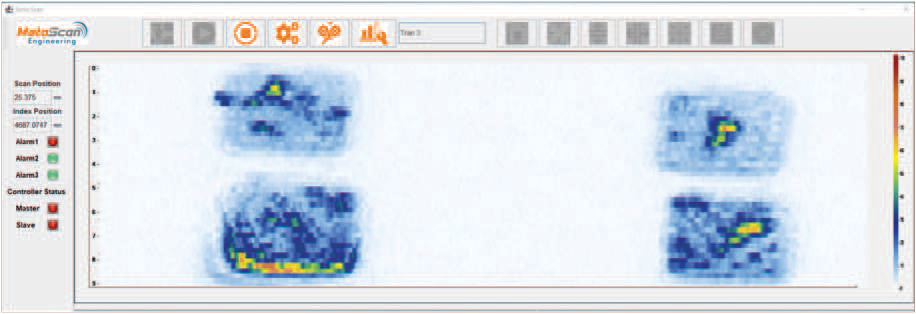

B, C & D Scan.
Various post scan analysis tools.
Special configuration for SEP 1927 & HIC inspection.
Multi axes interpolation for scanning of contoured components.
Technology - Conventional UT & Phased Array UT
Tank size (customizable) : 1500 x 1000 x 600 mm

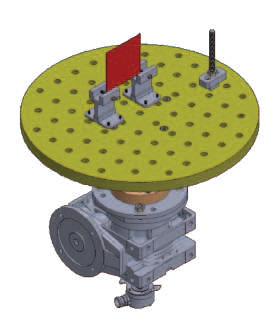

Scanner : Number of axes in manipulator: X, Y, Z, R, α & θ
Maximum scanning distance : X – Axis 1000 mm, Y - Axis 600 mm, Z - Axis 300 mm
Linear Axes Resolution : 0.1mm
Scanning Speed : 50 mm /sec
