GAS Cylinder UT System is for the volumetric defect inspection of parallel section of the cylinder body. It uses conventional ultrasonic method and water block technique for the inspection at .

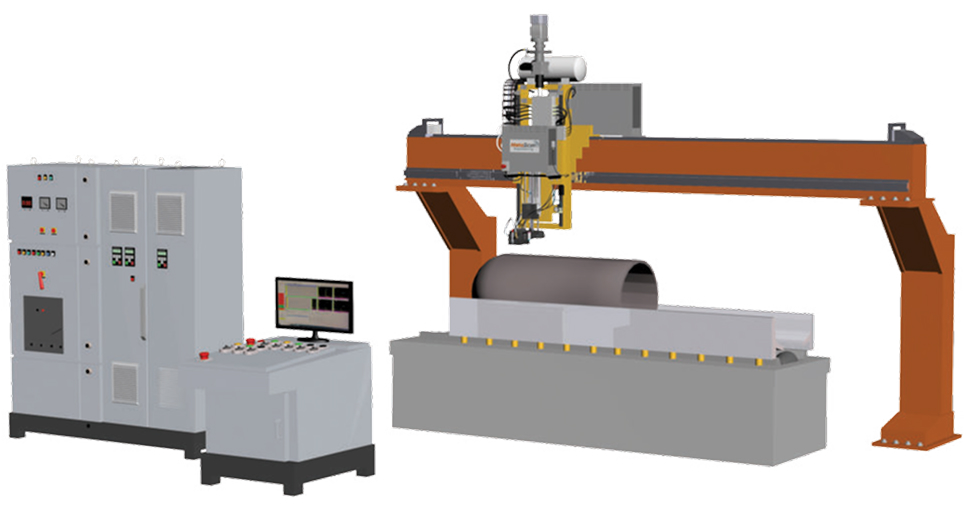

Fully automated gantry based Ultrasonic Testing System.
Localised water block technique for minimised testing water consumption.
Typical inspection speeds 1.2-2.4m/min conguration.

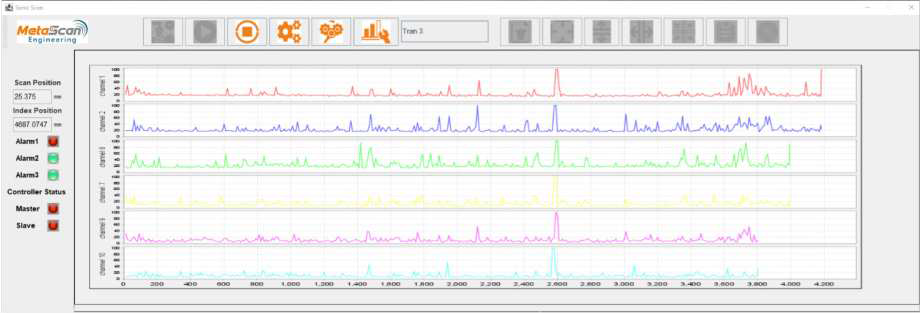

Advanced digital data acquisition and reporting system.
Optional cylinder handling system (unscrambler, feeding table, reference, infeed, outfeed conveyor, accept/reject cradles, singling & Transfer mechanism with automation).

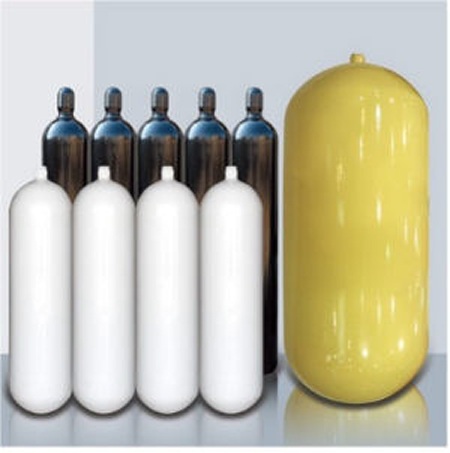

Cylinder dimensions : 200mm to 500mm OD.
Thickness : 5 to 15mm
length : 500 to 2500mm
Weight : 30 Kg to 220 Kg
Testing temperature : Ambient temperature
