Automated UT System
Model : ERW WBUTS-G

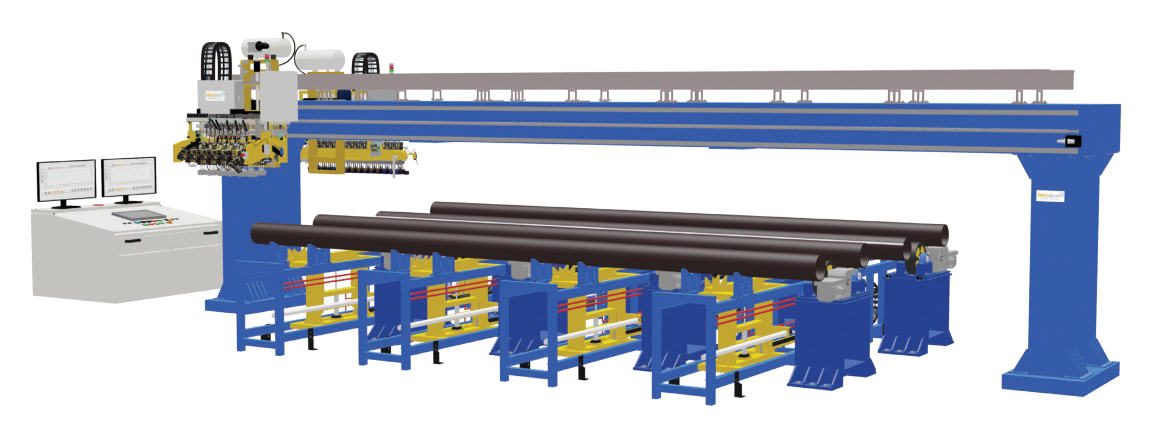

Gantry Scanner ERW Pipe Weld & Body UT System

ERW Pipe Weld & Body UT System is Gantry type scanner consisting of two testing heads one for the pipe weld and other for pipe full body inspection. ERW WBUTS-G provides ultrasonic inspection of ERW pipe using both conventional and phased array ultrasonic technology.

Features:

  • Fully automated gantry based Ultrasonic Testing System.

  • Conventional & Phased Array ultrasonic inspection of ERW pipes.

  • Dual cluster/head technology, one for weld inspection and other for full body laminar inspection.

  • Typical inspection speeds up to 10m/min.

  • Advanced digital data acquisition and reporting system.

  • Optional pipe/tube/bar handling system (feeding table, reference, infeed, outfeed conveyor, accept/reject cradles, singling & Transfer mechanism with automation).

Specifications :

  • Pipe dimensions  :  100mm to 508mm OD.

  • Thickness  :  4 to 12mm

  • Pipe length  :  5 to 12mtr.

  • Pipe straightness  :  within 1mm/m.

  • UT Testing standard  :  API 5L for UT Sensitivity

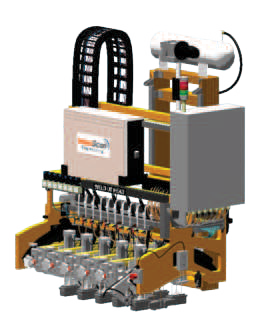

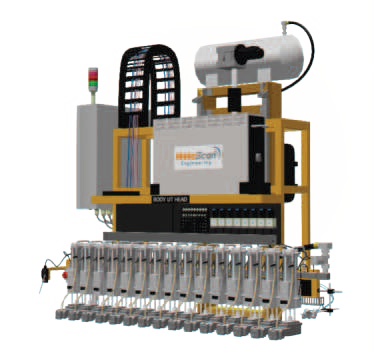

Weld & Body UT Testing Head/Cluster:

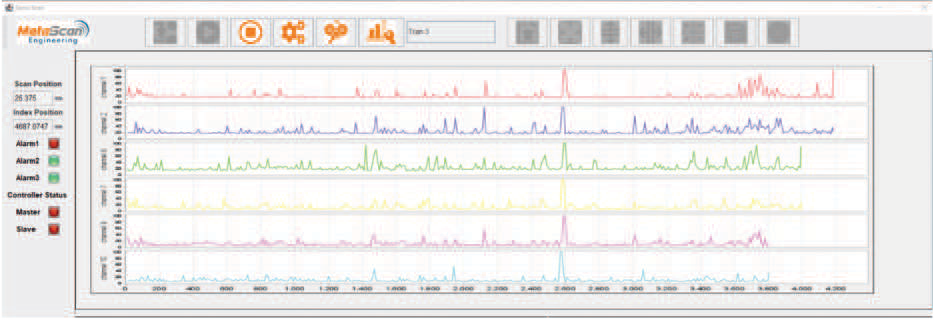

Data Acquisition Software:
